【One Cable. 180 Degrees. Professional-Grade Surveillance.】
Built for businesses, warehouses, and homeowners who demand real
reliability, the TQGOLD 8MP PoE Panoramic Bullet Camera is not
another WiFi toy. It runs on a single Ethernet cable (network +
power over 802.3af PoE), delivers true 180° panoramic coverage,
and carries professional features—ONVIF, 120dB WDR, AI people/
vehicle detection, alarm I/O, and a metal housing rated to -40°C.
Drop it into your existing NVR and forget about it.
────────────────────────────────────────
WHY CHOOSE TQGOLD
────────────────────────────────────────

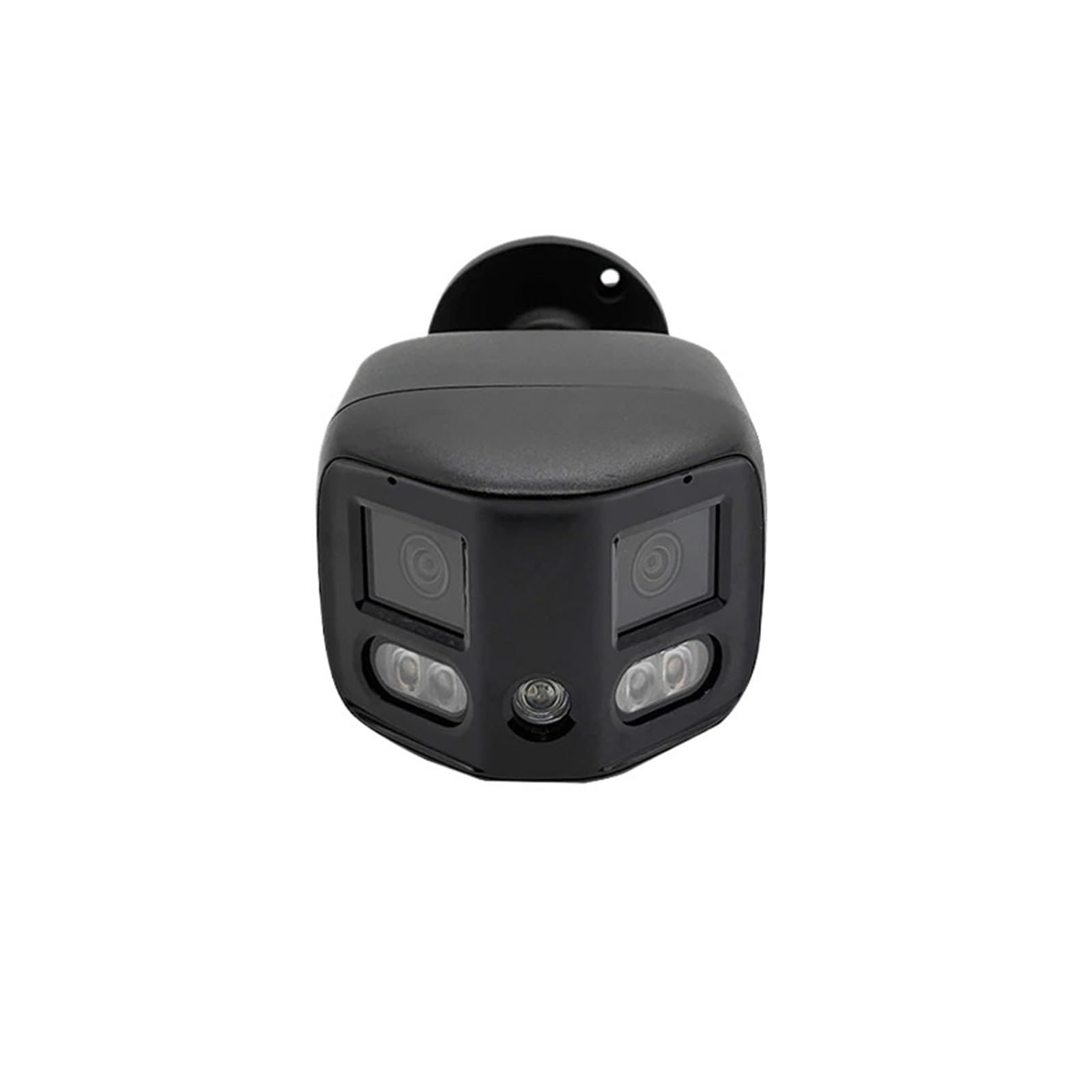

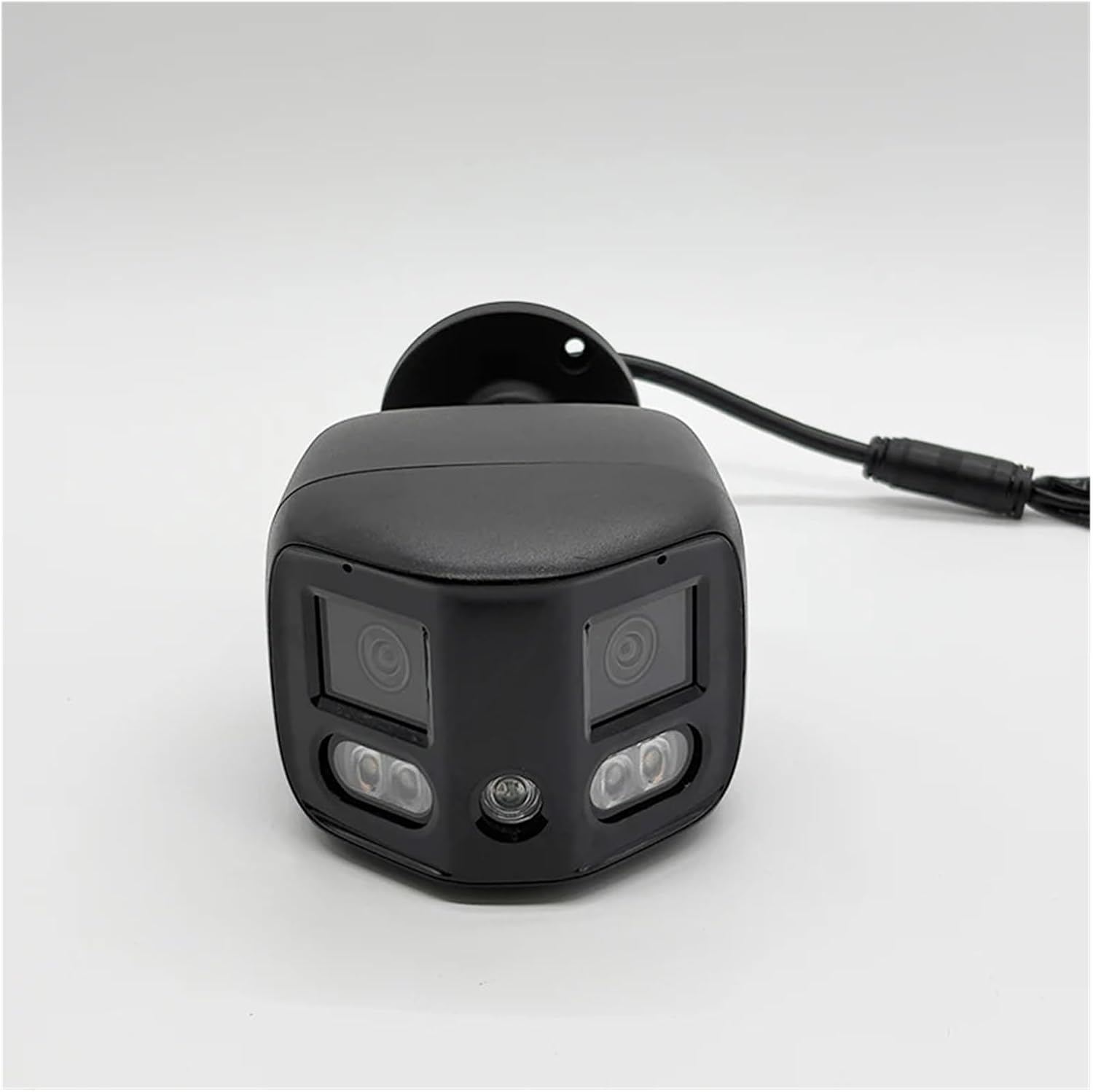

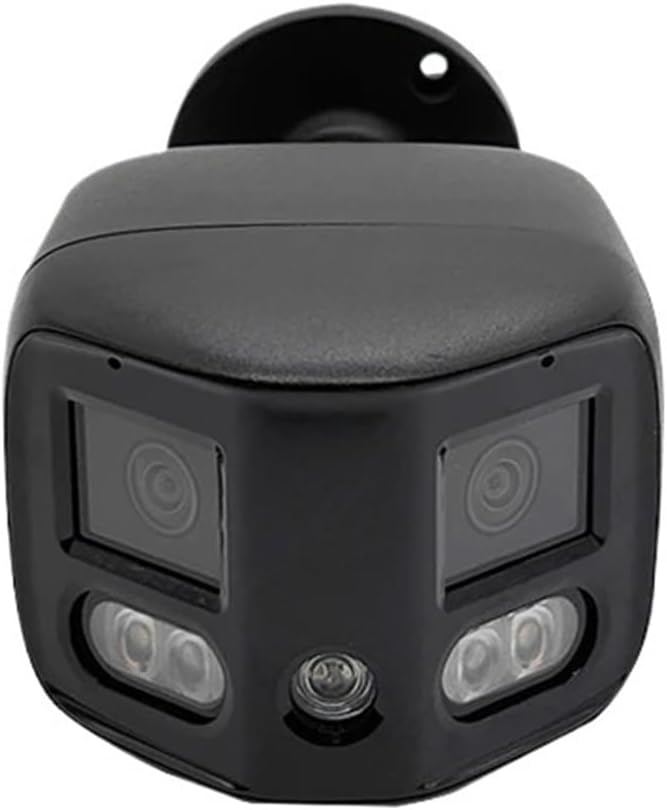

✅ 8MP 180° Panoramic Dual-Lens
Dual 1/2.7" CMOS sensors deliver 4096 × 1860 ultra-wide
panoramic video across 180° horizontal and 86° vertical.
One camera covers what normally needs two or three.
✅ PoE / 12V DC Dual Power
Runs over a single Ethernet cable with 802.3af PoE (3.8W),
or hook up a 12V DC adapter (3.4W). One cable = power + data,
cleaner install, no local outlet needed.
✅ AI People, Vehicle, Intrusion & Tripwire
On-board AI distinguishes people from vehicles and triggers
smart rules: line crossing, intrusion detection, region
entrance/exits. Fewer false alarms, faster response.
✅ EPTZ Digital Tracking
Electronic PTZ lets you digitally pan, tilt, and zoom into
the 8MP frame while retaining enough resolution for clear
details. A virtual "camera" follows moving targets.
✅ 120dB WDR + 3D Noise Reduction
True wide dynamic range handles backlit parking lots, sunny
doorways, and dark alleys in the same frame. 3D NR cleans
up night footage without smearing motion.
✅ 0.005 Lux Starlight Color Night Vision
A fast F1.4 lens and starlight sensor deliver usable color
footage at just 0.005 lux. Infrared reaches 25 meters; warm
LED light reaches 20 meters for full-color illumination.

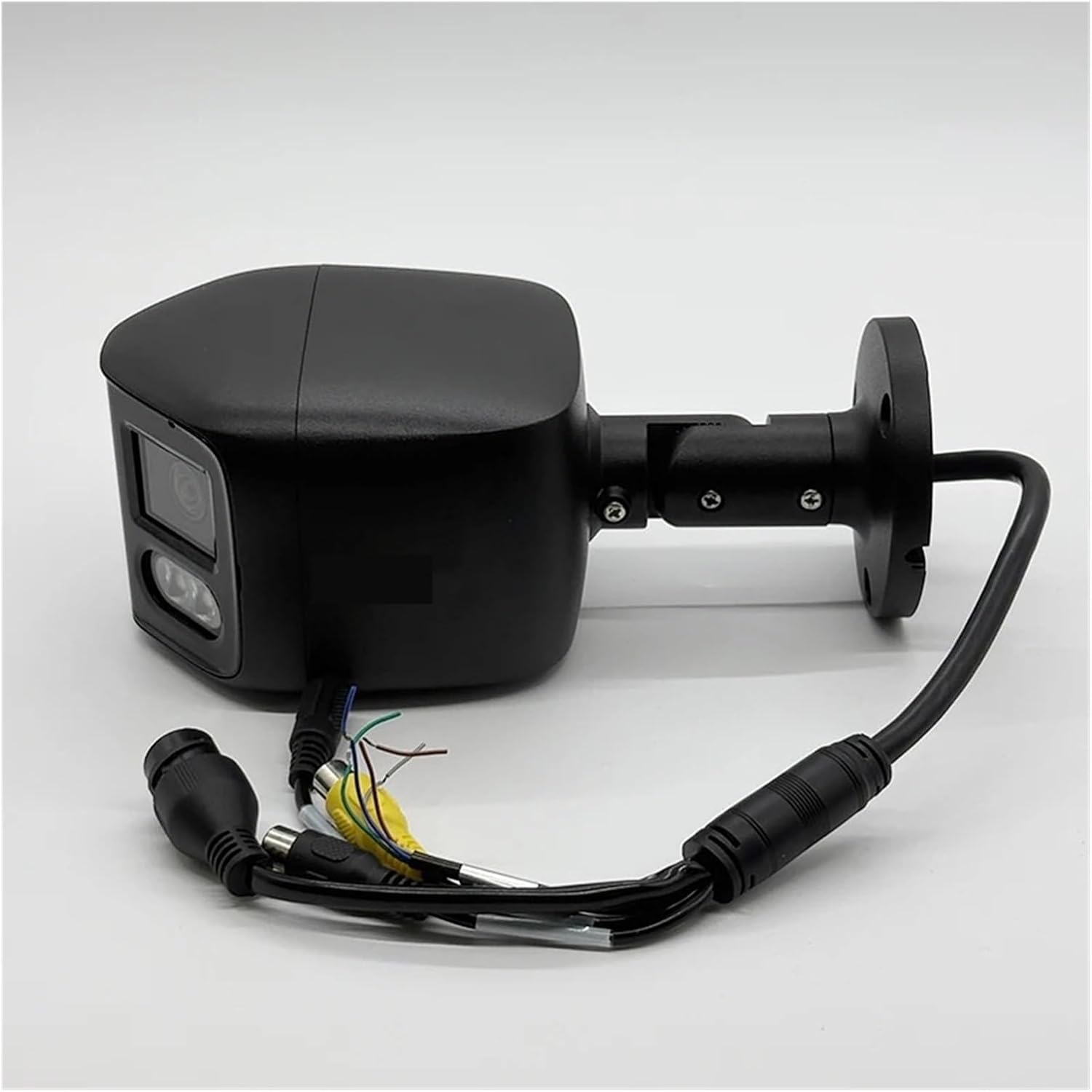

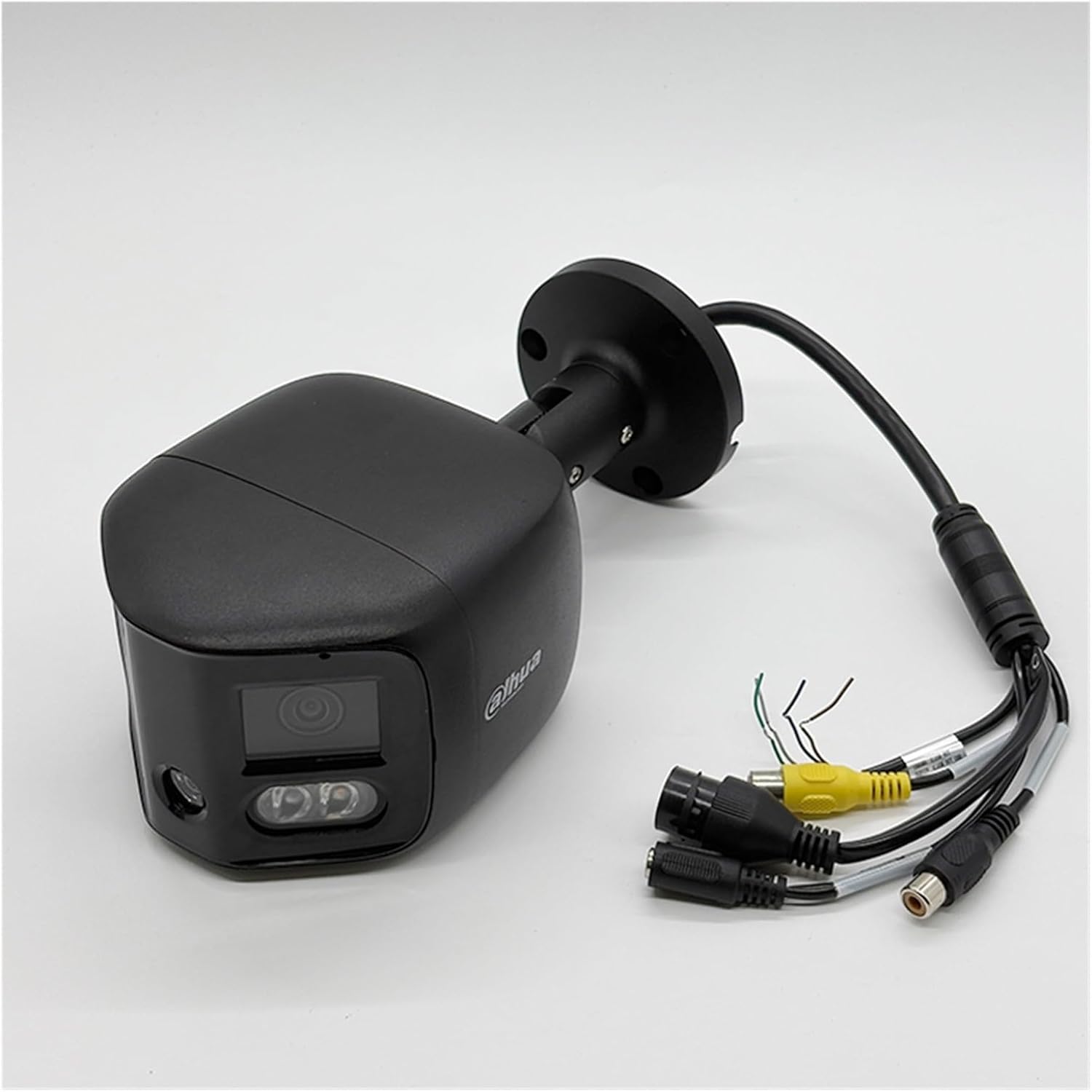

✅ Two-Way Audio + Alarm I/O
Built-in dual microphones and a speaker let you listen and
talk through the camera. A 1-in/1-out alarm interface hooks up
external sirens, gates, or lights for an integrated system.
✅ ONVIF, RTSP, FTP, NAS — Real Open Standards
Works with Hikvision, Dahua, Amcrest, Blue Iris, Synology,
QNAP, and most NVR/VMS platforms. Streams over RTSP, records
to NAS/FTP/SFTP, or drops footage on a 256GB microSD card.
✅ Metal IP67, -40°C to 60°C
An all-metal sealed housing survives industrial abuse: rain,
snow, dust, pressure washing, and extreme cold down to -40°C.
Humidity-rated to 95%.
✅ H.265 / H.264 / MJPEG
Flexible codec support keeps file sizes small (H.265) while
maintaining compatibility with older NVRs.
✅ Wall, Ceiling, or Pole Mount
Flexible mounting for eaves, walls, poles, or ceilings.
183 × 99 × 78mm body, ~695g, black finish.
────────────────────────────────────────
PERFECT FOR
────────────────────────────────────────
🏪 Retail & Storefronts — entrances, aisles, checkout
🏭 Warehouses & Loading Docks — bays, racks, staging
🅿️ Parking Lots & Garages — perimeters, lanes, exits
🏘️ Commercial Buildings — loading, back doors, alleys
🏡 Large Properties — estates, farms, gates, driveways
🏗️ Construction Sites — overnight, equipment, materials
🏫 Schools & Offices — building entry, perimeter
────────────────────────────────────────
SPECIFICATIONS
────────────────────────────────────────
• Resolution: 8MP (4096 × 1860) Panoramic
• Sensor: Dual 1/2.7" CMOS
• Lens: 2.8mm Fixed-Focal Dual Lens
• Aperture: F1.4
• Field of View: 180° Horizontal / 86° Vertical
• Min. Illumination: 0.005 Lux Color / 0.0005 Lux B/W
• Night Vision: IR up to 25 m / Warm Light up to 20 m
• Video Codec: H.265 / H.264 / MJPEG
• WDR: 120 dB True WDR
• Noise Reduction: 3D NR
• Day/Night: Auto / Color / B&W
• AI Detection: Human, Vehicle, Intrusion, Tripwire
• Smart Tracking: EPTZ Digital
• Audio: Dual Mic + Speaker, Two-Way
• Alarm I/O: 1 Input / 1 Output
• Audio I/O: 1 Input / 1 Output
• Network: RJ45 10/100 Mbps
• Protocols: IPv4/IPv6, RTSP, ONVIF
• Storage: microSD up to 256GB / FTP / SFTP / NAS
• Power: PoE 802.3af (3.8W) / 12V DC (3.4W)
• Waterproof: IP67
• Housing: Metal (Black)
• Operating Temp: -40°C ~ 60°C
• Humidity: Up to 95%
• Dimensions: 183.1 × 99 × 78 mm
• Weight: ~695 g
• Mounting: Wall / Ceiling / Pole
────────────────────────────────────────
WHAT'S IN THE BOX
────────────────────────────────────────
1 × TQGOLD 8MP 180° PoE Bullet Camera
1 × Mounting Bracket & Hardware
1 × Quick Start Guide
⚠️ PoE switch or 12V DC power adapter required (not included).
WiFi NOT supported. ONVIF/RTSP compatible with most NVR platforms.
TQGOLD—professional surveillance, built to last.
